Maxi Diaphragm Pump

Maxi Diaphragm Pump

Thanks to its simple design, ease of maintenance and robust construction, coupled with favourable whole life costs, our Maxi diaphragm pump has a long established heritage within the Wastewater and Waste process industries.

  • Designed with traditional engineering values in mind.
  • Unique and blockage resistant valve system.
  • Proven in a wide range of demanding slurry handling applications.
  • Used in Sewage Works Industry, Boats, Abattoirs, Potteries etc.
  • Efficient, robust and compact.
  • Fixed and variable flow rates available.
  • Highly reliable and easy to maintain.
  • Lightweight Frost Protection Cover.
  • Personal help and advice for every enquiry.
  • Also available with flap valves and Camel Ball Valves.

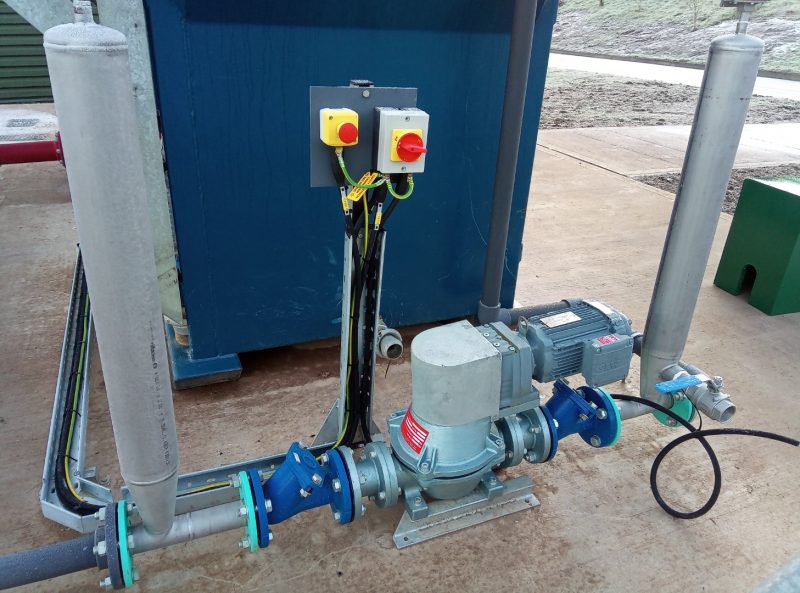

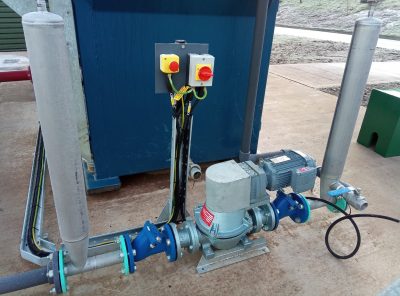

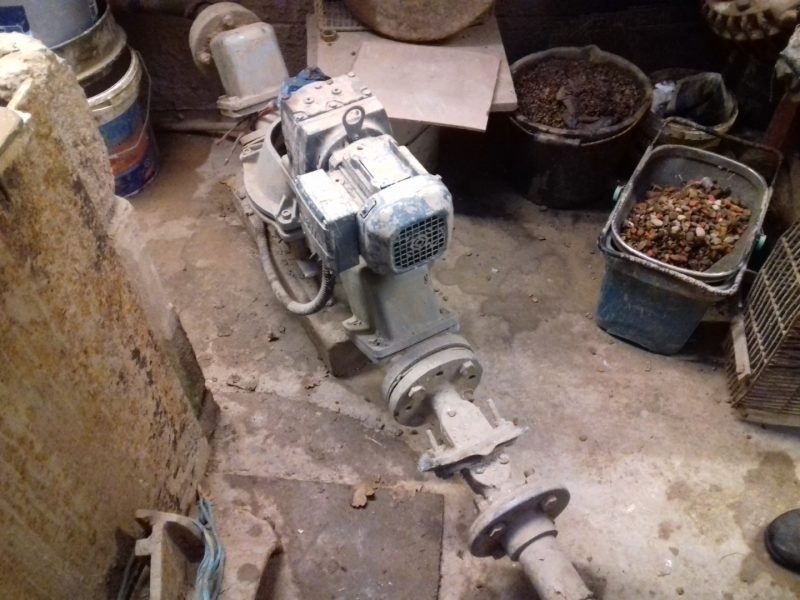

Maxi pump gallery

gallery image
gallery image
gallery image
gallery image

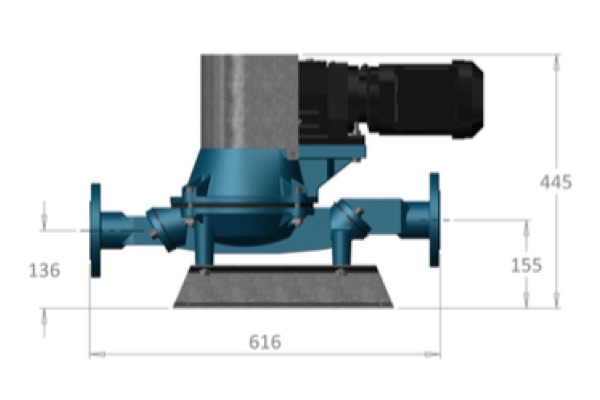

Technical Information

  • Motor sizes – 0.25 to 0.75 kw
  • pn16 Flange sizes / Hose Tails – 50 mm
  • Max. Suction lift – 6 Metres
  • Max. Delivery head – 20 Metres
  • Max flow rate @ 10 Metre head – 1lts/sec
  • Max. Solids size – 20 mm
  • Surge Arrestors – as required
